SKU: 61804-2RS1-SKF

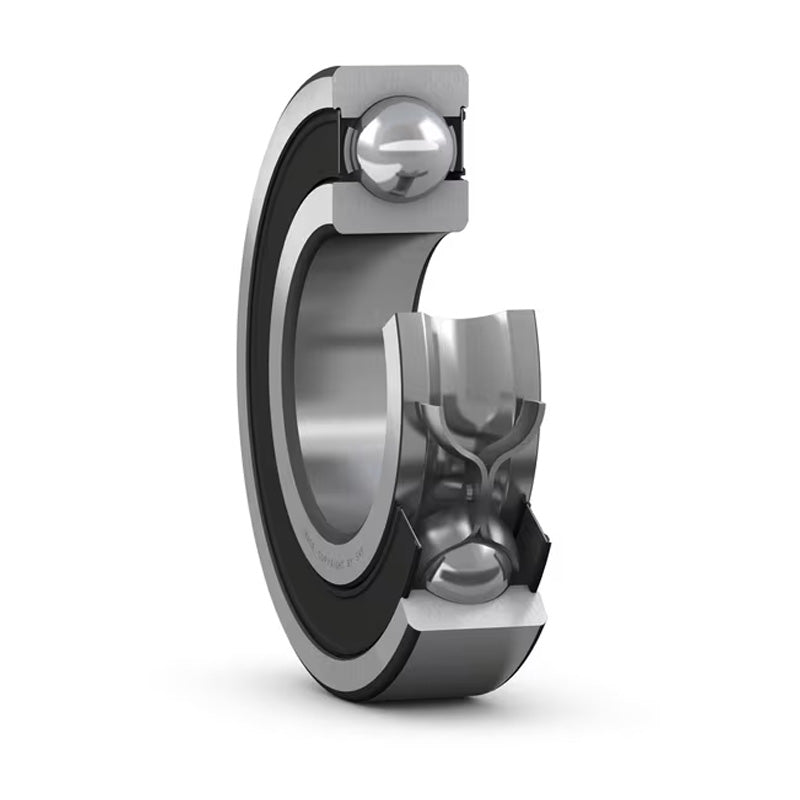

SKF 618042RS1 Rubber Sealed Thin Section Deep Groove Ball Bearing 20x32x7mm
- Regular price
- €21,95 ex VAT
- Sale price
- €21,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€19,54
19+
€18,44
29+
€18,22
39+
€18,00
49+
€17,78
74+
€17,56
99+
€16,46
199+
€16,24
249+
€16,02
499+
€15,80
999+
€15,37
SKU:
61804-2RS1-SKF
SKF 618042RS1 Rubber Sealed Thin Section Deep Groove Ball Bearing 20x32x7mm
- Regular price
- €21,95 ex VAT
- Sale price
- €21,95
- Regular price
-
Description
|
Thin Section Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Technical
| d | = | 20mm |
| D | = | 32mm |
| B | = | 7mm |
| Dynamic load C | = | 4.03 kN |
| Static load Co | = | 2.32 kN |
| Fatigue load limit Pu | = | 0.104 kN |
| Reference speed | = | 45000 rpm |
| Limiting speed | = | 13000 rpm |
| Weight | = | 0.018 kg |
| d2 | = | 22.6mm |
| D2 | = | 29.5mm |
| r1r2 min | = | 0.3mm |
| da min | = | 22mm |
| da max | = | 22.5mm |
| Da max | = | 30mm |
| ra max | = | 0.3mm |
| Calculation factor kr | = | 0.015 |
| Calculation factor f0 | = | 15 |
