SKU: 618/7-MB

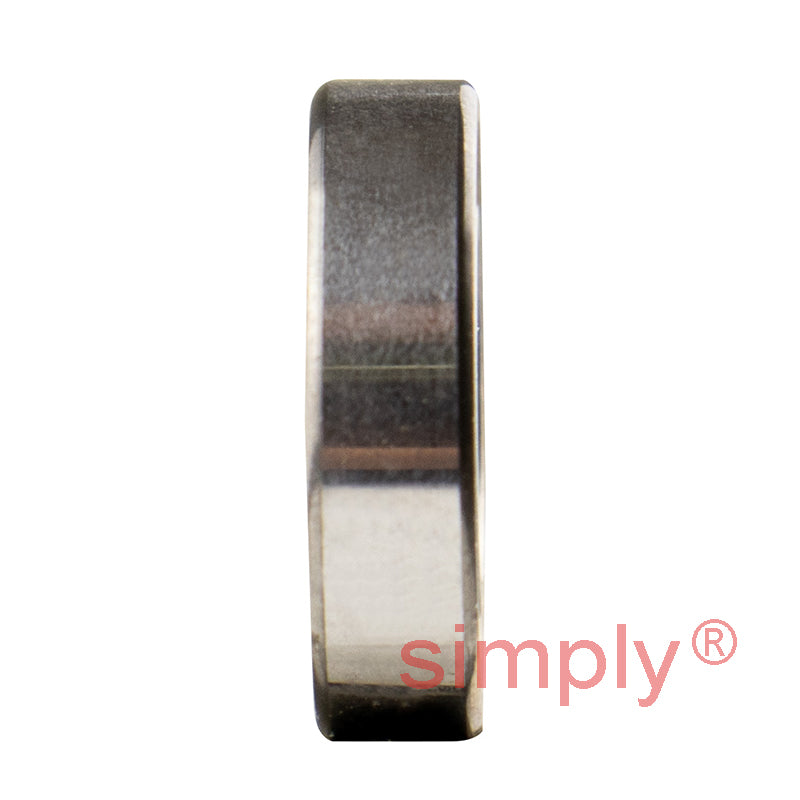

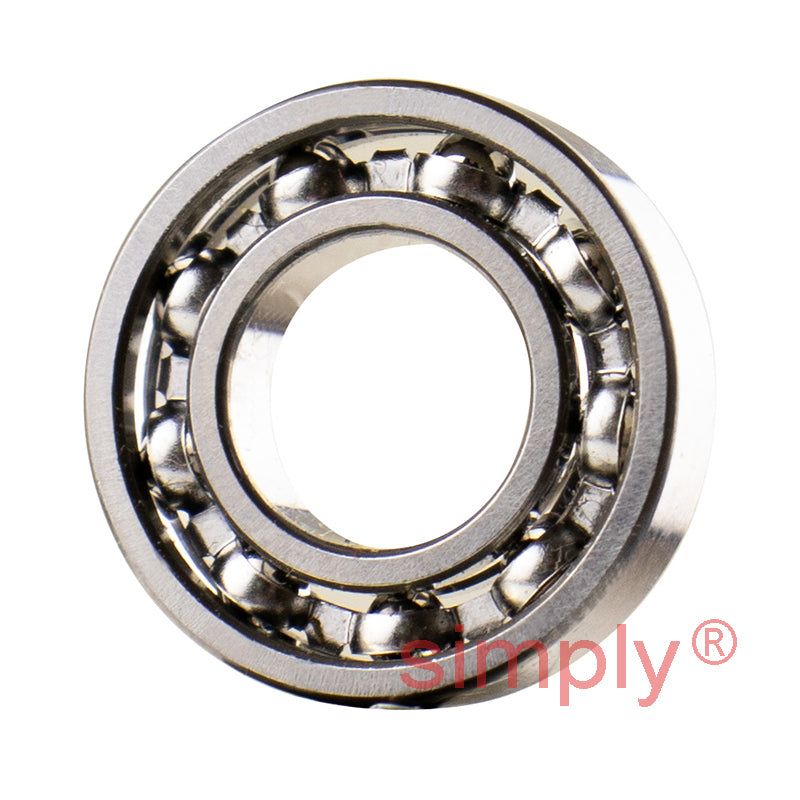

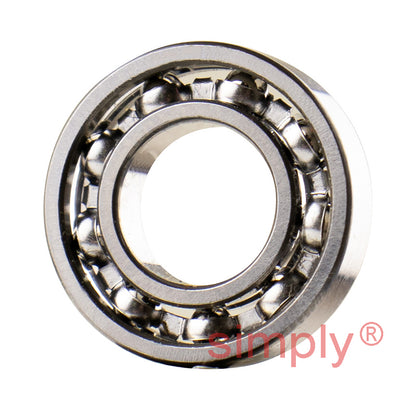

Major Branded 618/7 Open Deep Groove Ball Bearing 7x14x3.5mm
- Regular price
- €8,95 ex VAT
- Sale price
- €8,95
- Regular price
-
In stock
Quantity Price Breaks
10+
€7,97
19+
€7,52
29+
€7,43
39+
€7,34
49+
€7,25
74+
€7,16
99+
€6,71
199+
€6,62
249+
€6,53
499+
€6,44
999+
€6,27
SKU:
618/7-MB
Major Branded 618/7 Open Deep Groove Ball Bearing 7x14x3.5mm
- Regular price
- €8,95 ex VAT
- Sale price
- €8,95
- Regular price
-
Description
|
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 7mm |
| D | = | 14mm |
| B | = | 3.5mm |
| Dynamic load C | = | 0.956 kN |
| Static load Co | = | 0.4 kN |
| Fatigue load limit Pu | = | 0.017 kN |
| Reference speed | = | 100000 rpm |
| Limiting speed | = | 63000 rpm |
| Mass | = | 0.0022 kg |
| d1 | = | 8.9mm |
| D1 | = | 12.2mm |
| r1r2 min | = | 0.15mm |
| da min | = | 7.8mm |
| Da max | = | 13.2mm |
| ra max | = | 0.1mm |
| Calc factor Kr | = | 0.015 |
| Calc factor | = | 11 |
