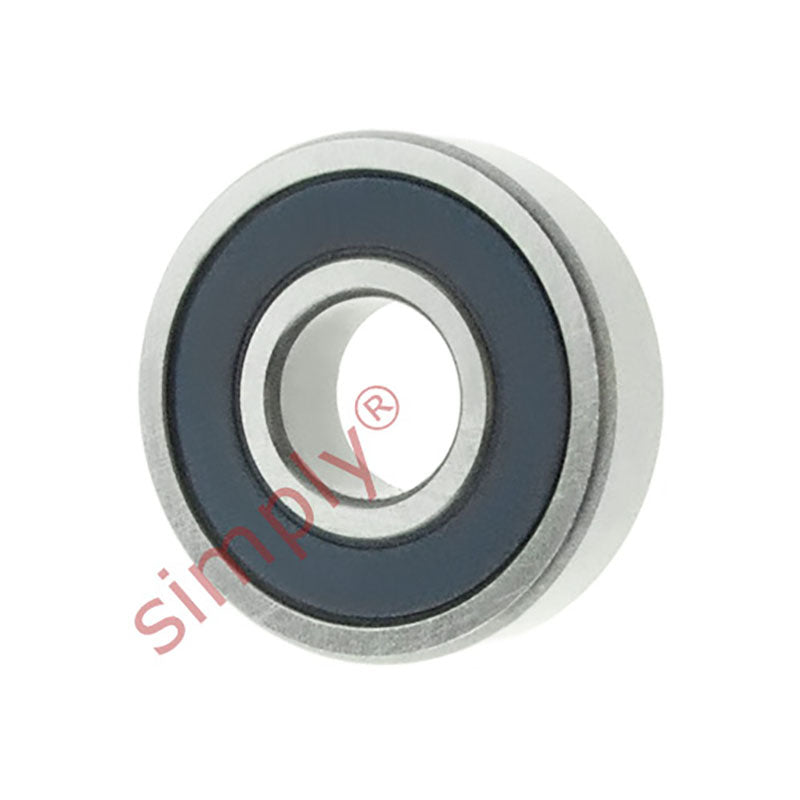

Major Branded 6092RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x24x7mm

SKU: 609-2RSR/C3-MB

Major Branded 6092RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x24x7mm

€5,95 ex VAT
€5,95
ex VAT
Equivalent to: 609NSEC3 609DUC3 609RSC3 609RSHC3 609PC3 609RSRC3 609LUC3 6092NSEC3 609DDUC3 6092RSC3 6092RS1C3 6092RSHC3 609PPC3 609LLU
In stock

Quantity Price Breaks

10+ €5,30
19+ €5,00
29+ €4,94
39+ €4,88
49+ €4,82
74+ €4,76
99+ €4,46
199+ €4,40
249+ €4,34
499+ €4,28
999+ €4,17
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 6092RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x24x7mm
SKU: 609-2RSR/C3-MB

Major Branded 6092RSRC3 Rubber Sealed Deep Groove Ball Bearing 9x24x7mm

€5,95 ex VAT
€5,95
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 9mm
D = 24mm
B = 7mm
Dynamic load C = 3.9 kN
Static load Co = 1.66 kN
Fatigue load limit Pu = 0.071 kN
Reference speed = 70000 rpm
Limiting speed = 19000 rpm
Mass = 0.014 kg
d2 = 12.8mm
D2 = 21.2mm
r1r2 min = 0.3mm
da min = 11
