SKU: 6014-2Z-HT-270
6014ZZHT270 High Temp 270C High Speed Shielded Deep Groove Ball Bearing 70x110x20mm Max 495rpm
- Regular price
- €55,95 ex VAT
- Sale price
- €55,95
- Regular price
-
Quantity Price Breaks
6014ZZHT270 High Temp 270C High Speed Shielded Deep Groove Ball Bearing 70x110x20mm Max 495rpm
- Regular price
- €55,95 ex VAT
- Sale price
- €55,95
- Regular price
-
Description

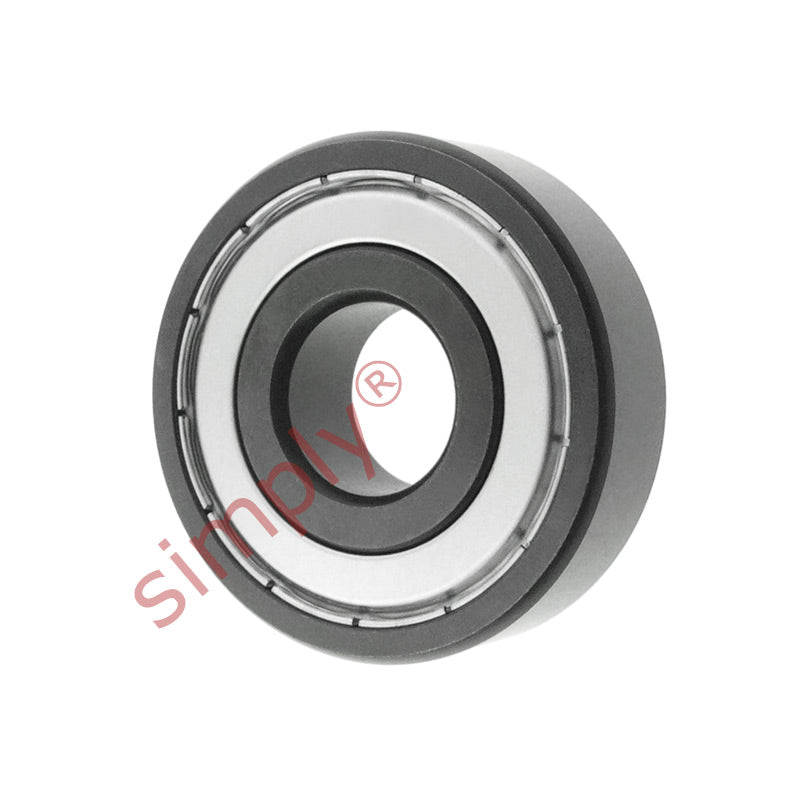

HT270 Series High-Temperature Range Deep Groove Ball Bearings: With an operating range from minus 25 degrees up to plus 270 degrees Celsius these bearings are ideally situated in arduous conditions where rapid temperature changes are expected, refrigeration and baking equipment being a good example. Of standard ball bearing construction with an increased clearance to compensate for thermal expansion, they are manufactured with metal shields inserted into the outer raceway, these fit in close proximity to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled NLGI scale 2-3 grease in the bearing. The bearings have a black manganese phosphate coating to all outer surfaces
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, wide operating temperature
Technical
| Inside diameter d | = | 70mm |
| Outside diameter D | = | 110mm |
| Width W | = | 20mm |
| Static load max | = | 18.21 kN |
| Max operating temperature | = | 270 deg Celcius |
| Maximum speed | = | 495 rpm |
| Weight | = | 600 g |
