SKU: 6011-2RS-CDX

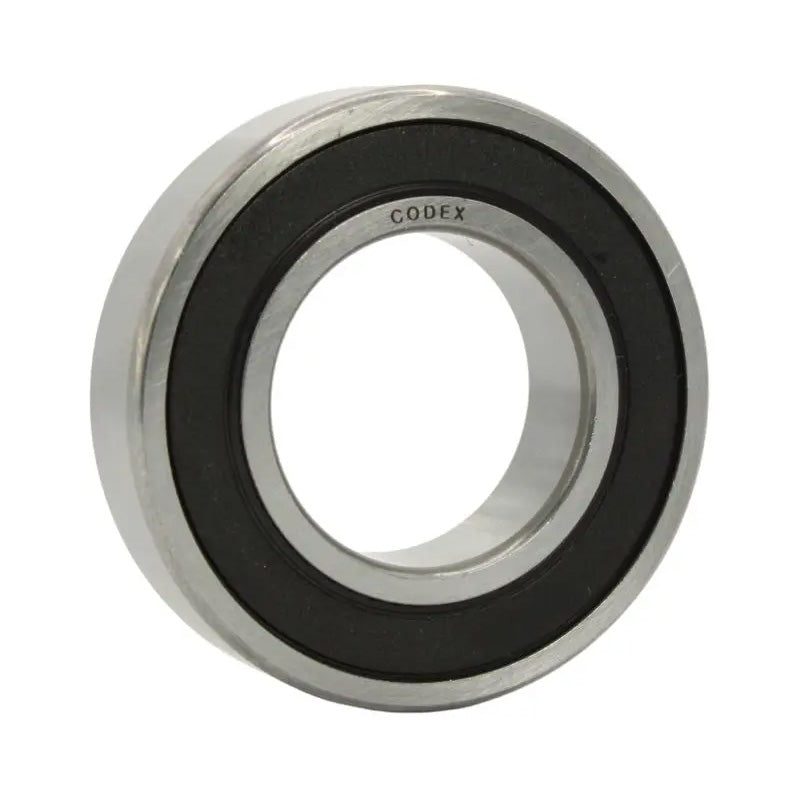

Codex 60112RS Rubber Sealed Deep Groove Ball Bearing 55x90x18mm
- Regular price
- €19,95 ex VAT
- Sale price
- €19,95
- Regular price
-
In stock
Quantity Price Breaks
4
€17,76
10
€16,76
20
€16,56
30
€16,36
50
€16,16
75
€15,96
100
€14,96
200
€14,76
250
€14,56
500
€14,36
1000
€13,97
SKU:
6011-2RS-CDX
Codex 60112RS Rubber Sealed Deep Groove Ball Bearing 55x90x18mm
- Regular price
- €19,95 ex VAT
- Sale price
- €19,95
- Regular price
-
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Technical
| d | = | 55mm |
| D | = | 90mm |
| B | = | 18mm |
| Dynamic load C | = | 29.6 kN |
| Static load Co | = | 21.2 kN |
| Fatigue load limit Pu | = | 0.9 |
| Reference speed | = | 16000 rpm |
| Limiting speed | = | 4500 rpm |
| Weight | = | 0.39 kg |
| d1 | = | 66.3mm |
| D2 | = | 81.5mm |
| r1r2 | = | 1.1mm |
| da min | = | 61mm |
| Da max | = | 84mm |
| ra max | = | 1mm |
| Calc factor kr | = | 0.025 |
| Calc factor Cor f0 | = | 15 |
