SKU: 6009-HT-330

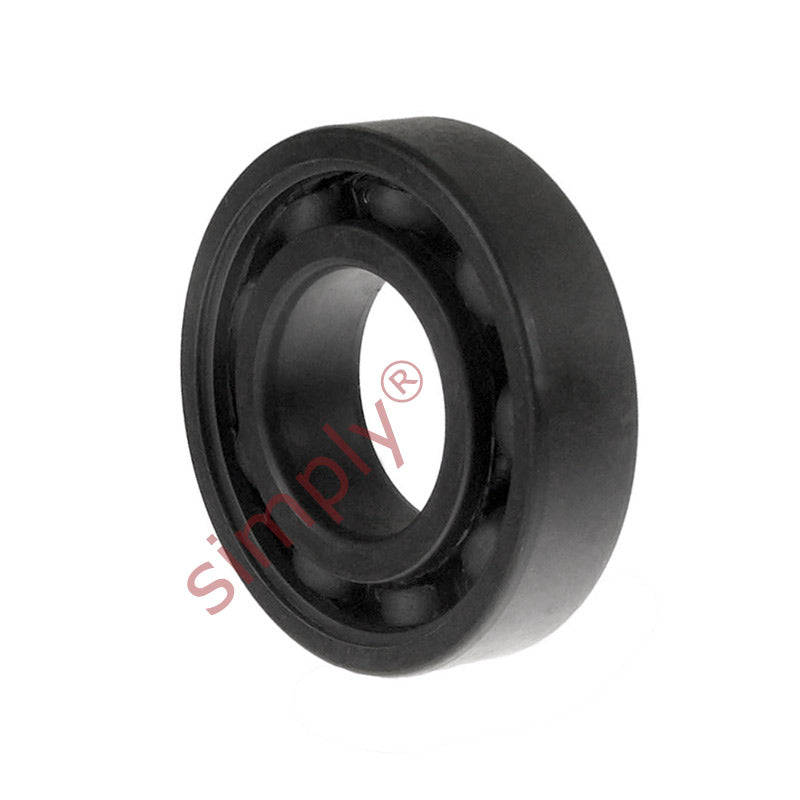

6009HT330 High Temp 330C Open Deep Groove Ball Bearing 45x75x16mm Max 100rpm
- Regular price
- €22,95 ex VAT
- Sale price
- €22,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€20,43
5
€19,28
10
€19,05
15
€18,82
20
€18,59
30
€18,36
40
€17,21
50
€16,98
60
€16,75
75
€16,52
100
€16,07
SKU:
6009-HT-330
6009HT330 High Temp 330C Open Deep Groove Ball Bearing 45x75x16mm Max 100rpm
- Regular price
- €22,95 ex VAT
- Sale price
- €22,95
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Technical
| Inside diameter d | = | 45mm |
| Outside diameter D | = | 75mm |
| Width W | = | 16mm |
| Static load max | = | 8.27 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 100 rpm |
| Weight | = | 250 g |
