SKU: 60-1-NO30-DUN
Branded 60-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- €6,95 ex VAT
- Sale price
- €6,95
- Regular price
-
In stock
Quantity Price Breaks
2
€6,19
5
€5,84
10
€5,77
29
€5,70
49
€5,63
75
€5,56
100
€5,21
200
€5,14
250
€5,07
500
€5,00
1000
€4,87
SKU:
60-1-NO30-DUN
Branded 60-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/4 inch Pitch
- Regular price
- €6,95 ex VAT
- Sale price
- €6,95
- Regular price
-
Description

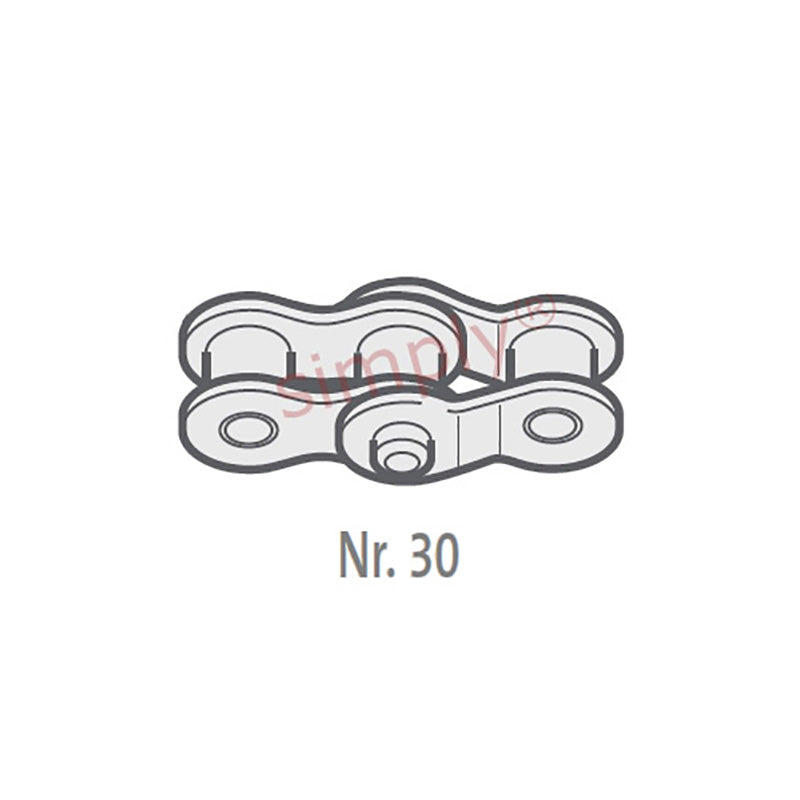

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 18mm |
| Plate Width Inner max (E) | = | 2.4mm |
| Plate Width Outer max (F) | = | 2.4mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H1) | = | 25.9mm |
| Connecting Link Extension max (J) | = | 1.6mm |
| ISO606 Tensile Strength min | = | 31300 N |
| Weight | = | 1.5kg/m |
