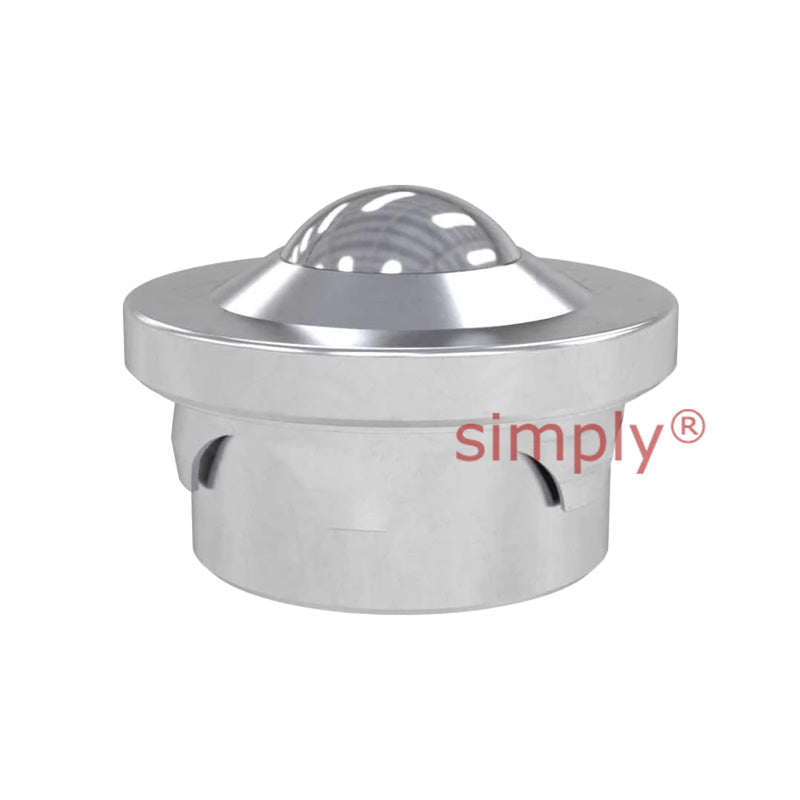

High-Performance Medium Duty Ball Transfer Unit with 15.88mm Steel Ball - Load Capacity 70kg - Allow 2-3 Days

SKU: 569-2215

High-Performance Medium Duty Ball Transfer Unit with 15.88mm Steel Ball - Load Capacity 70kg - Allow 2-3 Days

€14,95 ex VAT
€14,95
ex VAT
In stock

Quantity Price Breaks

4 €13,31
9 €12,56
14 €12,41
19 €12,26
49 €12,11
74 €11,96
99 €11,21
199 €11,06
249 €10,91
499 €10,76
999 €10,47
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
High-Performance Medium Duty Ball Transfer Unit with 15.88mm Steel Ball - Load Capacity 70kg - Allow 2-3 Days
SKU: 569-2215

High-Performance Medium Duty Ball Transfer Unit with 15.88mm Steel Ball - Load Capacity 70kg - Allow 2-3 Days

€14,95 ex VAT
€14,95
ex VAT

Description

CHN43UW9EB

This ball transfer unit is supplied with a fixing clip. Fixing clips compensates variations in bore and diameter, making them particularly suitable for situations where access to only one side of the mounting surface is possible.

Technical

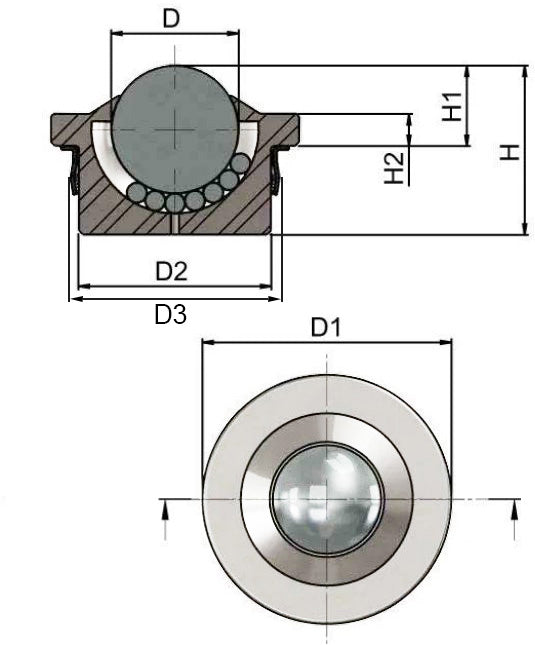

--- = Dimensions
D = 15.88mm
D1 = 31mm
D2 = 24mm
D3 (With Clip) = 25/25.5mm
H = 21mm
H1 = 10mm
H2 = 4mm
--- = Loads and Speeds
Max Load = 70 kg
Weight = 0.07 kg
--- = Materials
Material = Body: Zinc Plated Carbon Steel<
br> = Ball: Steel 9Cr18Mo
