SKU: 5304-ZZ-KSM

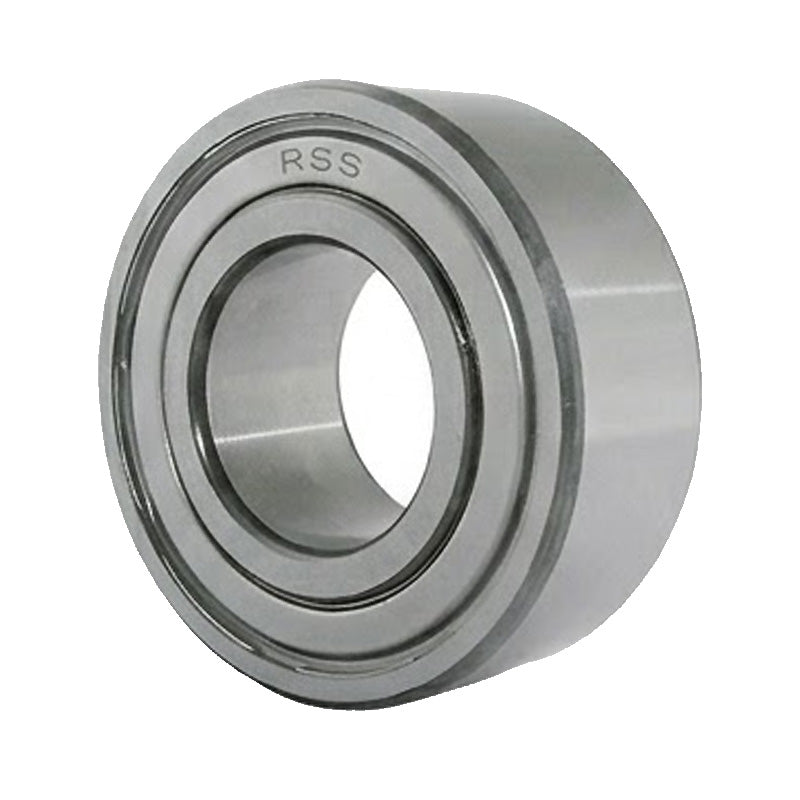

KSM 5304ZZ Metal Shielded Double Row Angular Contact Ball Bearing 20x52x22.2mm
- Regular price
- €32,95 ex VAT
- Sale price
- €32,95
- Regular price
-
In stock
Quantity Price Breaks
4
€29,33
9
€27,68
19
€27,35
29
€27,02
49
€26,69
99
€26,36
179
€24,71
249
€24,38
499
€24,05
699
€23,72
999
€23,07
SKU:
5304-ZZ-KSM
KSM 5304ZZ Metal Shielded Double Row Angular Contact Ball Bearing 20x52x22.2mm
- Regular price
- €32,95 ex VAT
- Sale price
- €32,95
- Regular price
-
Description
|
Metal Shielded Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Technical
| --- | = | Bearing Dimensions |
| d | = | 20mm |
| D | = | 52mm |
| B | = | 22.2mm |
| --- | = | Abutment Dimensions |
| a | = | 30.5mm |
| r1r2 min | = | 1.1mm |
| r1r2 max | = | 1mm |
| Da min | = | 27mm |
| da max | = | 45mm |
| --- | = | Speeds, Weights and Loads |
| Basic Load Raiting Dynamic Cr | = | 20600 N |
| Basic Static Load Raiting Cor | = | 12700 N |
| Limiting Speed in Grease | = | 8000 rpm |
| Limiting Speed in Oil | = | 11000 rpm |
| Weight | = | 0.217 kg |
