SKU: 52224.MB

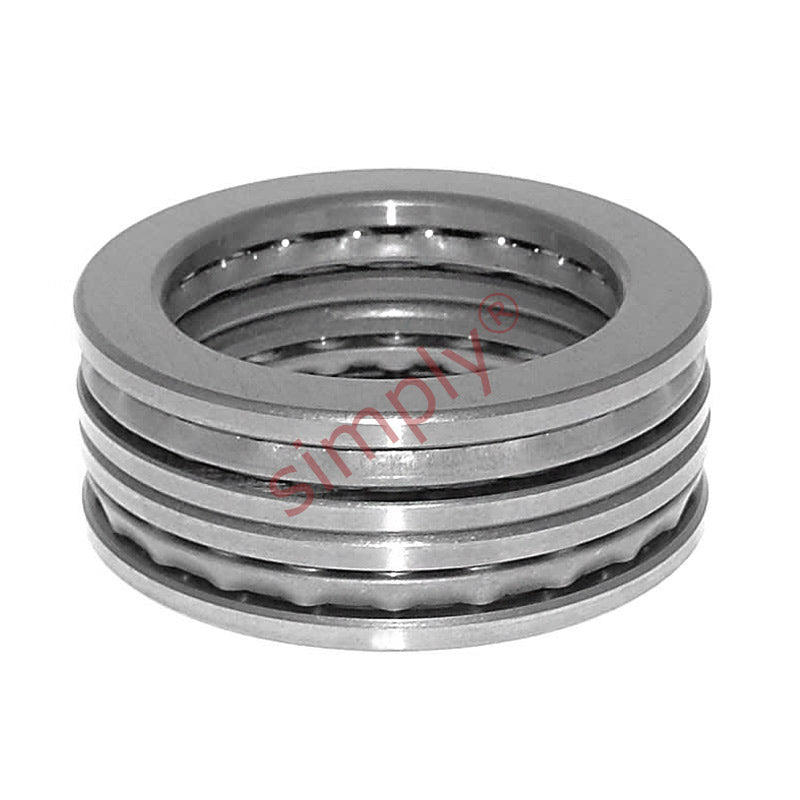

52224 Double Thrust Ball Bearing with Flat Seats 100x170x68mm
- Regular price
- €635,95 ex VAT
- Sale price
- €635,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€566,00
19
€534,20
29
€527,84
39
€521,48
49
€515,12
74
€508,76
99
€476,96
199
€470,60
249
€464,24
499
€457,88
999
€445,17
SKU:
52224.MB
52224 Double Thrust Ball Bearing with Flat Seats 100x170x68mm
- Regular price
- €635,95 ex VAT
- Sale price
- €635,95
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 100mm |
| D | = | 170mm |
| H | = | 68mm |
| Dynamic load C | = | 140 kN |
| Static load Co | = | 440 kN |
| Fatigue load Pu | = | 13.4 kN |
| Minimum load factor A | = | 1 |
| Reference speed | = | 1600 rpm |
| Limiting speed | = | 2200 rpm |
| Weight | = | 5.25 kg |
| D1 | = | 123mm |
| B | = | 15mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1.1mm |
| da | = | 120mm |
| Da max | = | 140mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
