SKU: 4215-2RS-EU

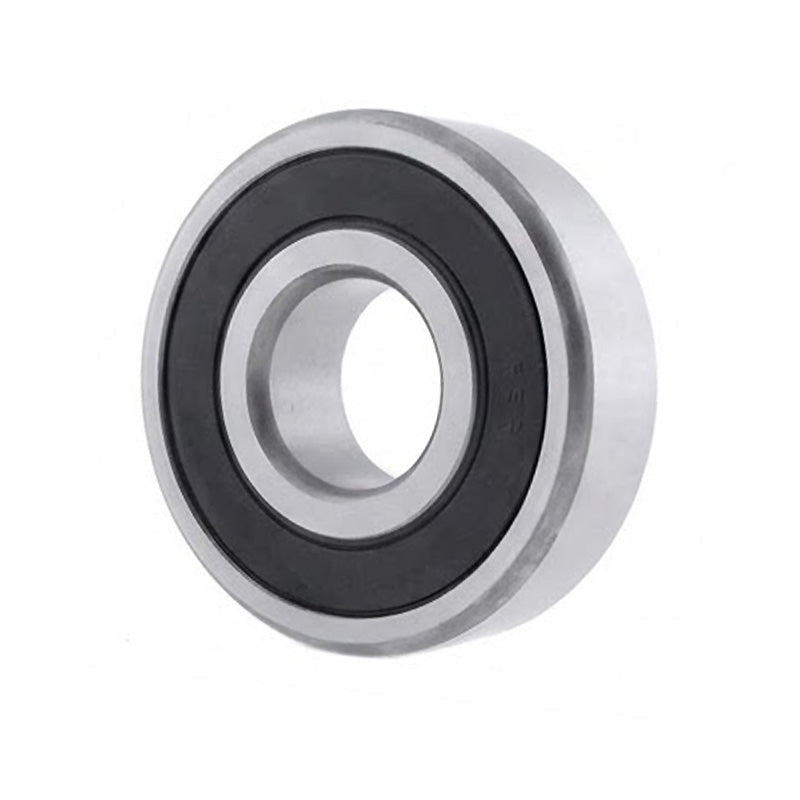

42152RS Budget Sealed Double Row Deep Groove Ball Bearing 75x130x31mm
- Regular price
- €71,95 ex VAT
- Sale price
- €71,95
- Regular price
-
Quantity Price Breaks
42152RS Budget Sealed Double Row Deep Groove Ball Bearing 75x130x31mm
- Regular price
- €71,95 ex VAT
- Sale price
- €71,95
- Regular price
-
Description
|
Sealed Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability |

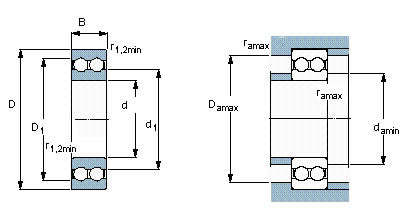

Technical
| d | = | 75mm |
| D | = | 130mm |
| B | = | 31mm |
| Dynamic load C | = | 72.8 kN |
| Static load Co | = | 80 kN |
| Fatigue load limit Pu | = | 3.35 kN |
| Reference speed | = | 7500 rpm |
| Limiting speed | = | 4000 rpm |
| Weight | = | 1.6 kg |
| d1 | = | 96.9mm |
| D1 | = | 114mm |
| r1r2 min | = | 1.5mm |
| da min | = | 84mm |
| Da max | = | 121mm |
| ra max | = | 1.5mm |
| kr | = | 0.05 |
| fo | = | 16 |
