SKU: 2211.K.2RS.C3.MB

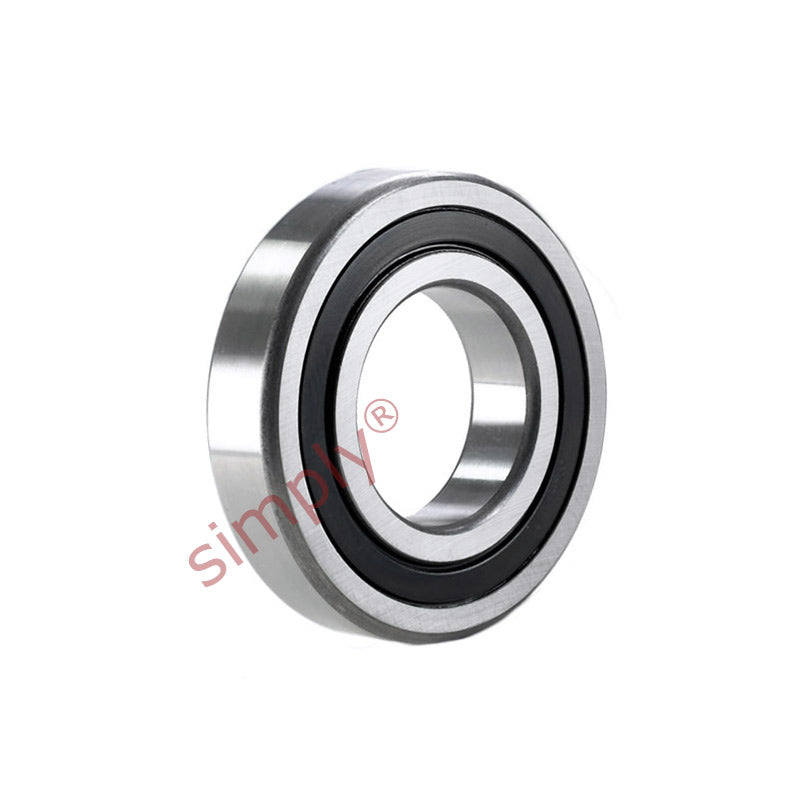

2211K2RSC3 Rubber Sealed Self Aligning Ball Bearing with Taper Bore 55x100x25mm
- Regular price
- €77,95 ex VAT
- Sale price
- €77,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€69,38
19
€65,48
29
€64,70
39
€63,92
49
€63,14
74
€62,36
99
€58,46
199
€57,68
249
€56,90
499
€56,12
999
€54,57
SKU:
2211.K.2RS.C3.MB
2211K2RSC3 Rubber Sealed Self Aligning Ball Bearing with Taper Bore 55x100x25mm
- Regular price
- €77,95 ex VAT
- Sale price
- €77,95
- Regular price
-
Description
|
Rubber Sealed Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. Supplied with two rubber seals this provided protection from the surrounding environment but limits the amount of self alignment Benefits: Tolerates misalignment, cool running, self centering |
Technical
| = | --- | |
| Dimensions | = | d |
| 55mm | = | D |
| 100mm | = | B |
| 25mm | = | r1r2 min |
| 1.5mm | = | --- |
| Speeds, Loads and Weights | = | Dynamic Load |
| 27.6kN | = | Static Load |
| 10.6kN | = | Pu |
| 0.5Kn | = | Limiting Speed |
| 8500rpm | = | Weight |
| 0.79kg | = | --- |
| Factors | = | e |
| 0.19 | = | Fa/Fr = e |
| 3.3 | = | Fa/Fr > |
| e | = | 5.1 |
| Y0 | = | 3.5 |
| --- | = | Matching Adaptor Sleeves |
| Adaptor Sleeve | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=H311C+sleeve> | = | H311C< |
| /a> | = | |
| Adaptor Sleeve | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=H311E+sleeve> | = | H311E< |
| /a> | = |
