SKU: 21311-E1-K+H311-FAG

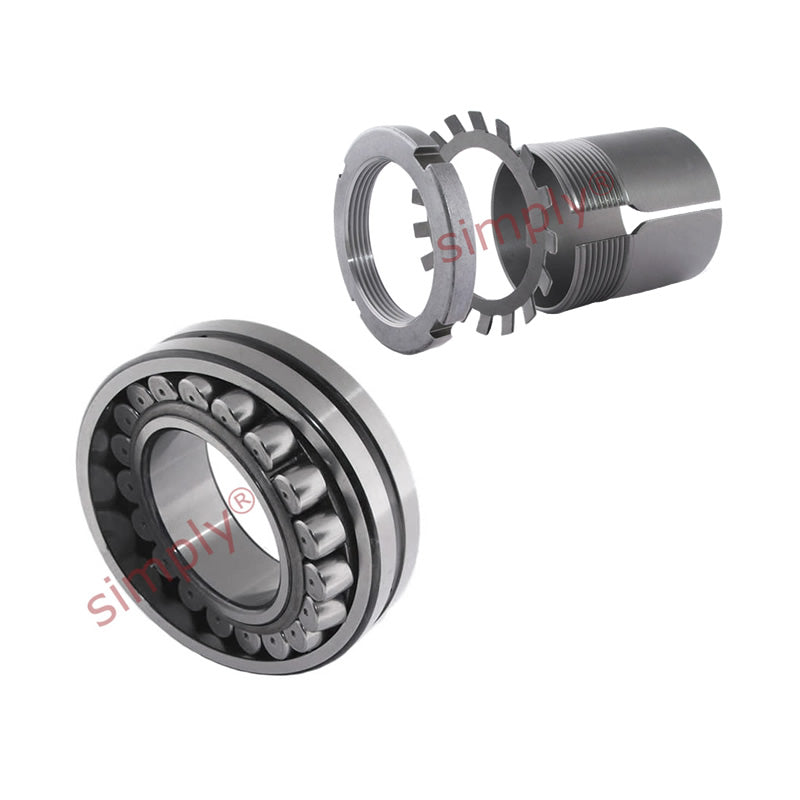

FAG 21311E1K X-life Spherical Roller Bearing with H311 Adapter Sleeve 50x120x29mm
- Regular price
- €138,95 ex VAT
- Sale price
- €138,95
- Regular price
-
Not in stock
No price breaks available for this product.
SKU:
21311-E1-K+H311-FAG
FAG 21311E1K X-life Spherical Roller Bearing with H311 Adapter Sleeve 50x120x29mm
- Regular price
- €138,95 ex VAT
- Sale price
- €138,95
- Regular price
-
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
Technical
| d1H | = | 50mm |
| d | = | 55mm |
| D | = | 120mm |
| B | = | 29mm |
| r min | = | 2mm |
| D1 | = | 98.3mm |
| d2 | = | 71.4mm |
| ds | = | 3.2mm |
| ns | = | 6.5mm |
| Dm | = | 75mm |
| l | = | 45mm |
| c | = | 13mm |
| da max | = | 71mm |
| Da max | = | 109mm |
| db min | = | 60mm |
| Ba min | = | 6mm |
| ra max | = | 2mm |
| Dynamic load Cr | = | 160000 N |
| Static load C0r | = | 155000 N |
| e | = | 0.24 |
| Y1 | = | 2.84 |
| Y2 | = | 4.23 |
| Y0 | = | 2.78 |
| Fatigue load limit Cur | = | 20200 N |
| Limiting speed nG | = | 6300 rpm |
| Reference speed nB | = | 5100 rpm |
| Bearing weight | = | 1.19 kg |
| Adapter sleeve weight | = | 0.35 kg |
