SKU: 21306-EU
Budget 21306 Spherical Roller Bearing with Cylindrical Bore 30x72x19mm
- Regular price
- €38,95 ex VAT
- Sale price
- €38,95
- Regular price
-
In stock
Quantity Price Breaks
10
€34,67
19
€32,72
29
€32,33
39
€31,94
49
€31,55
74
€31,16
99
€29,21
199
€28,82
249
€28,43
499
€28,04
999
€27,27
SKU:
21306-EU
Budget 21306 Spherical Roller Bearing with Cylindrical Bore 30x72x19mm
- Regular price
- €38,95 ex VAT
- Sale price
- €38,95
- Regular price
-
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
Technical
| = | --- | |

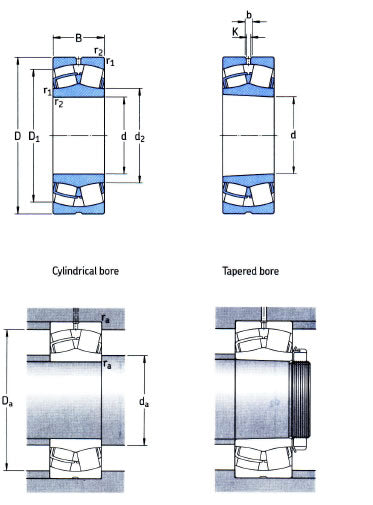

| Dimensions | = | d |
| 30mm | = | D |
| 72mm | = | B |
| 19mm | = | d2 |
| 43.3mm | = | D1 |
| 58.8mm | = | r1r2 min |
| 1.1mm | = | da min |
| 37mm | = | Da max |
| 65mm | = | ra max |
| 1mm | = | --- |
| Speeds, Loads and Weights | = | Dynamic Load Rating |
| 55.2kN | = | Static Load Rating |
| 61kN | = | Fatigue Load Limit |
| 6.8kN | = | Reference Speed |
| 7500rpm | = | Limit Speed |
| 10000rpm | = | Weight |
| 0.41kg | = | --- |
| Factors | = | e |
| 0.27 | = | Y1 |
| 2.5 | = | Y2 |
| 3.7 | = | Y0 |
| 2.5 | = | N/A |
