SKU: 16B-1-NO12-MB
Branded 16B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- €8,95 ex VAT
- Sale price
- €8,95
- Regular price
-
In stock
Quantity Price Breaks
2
€7,97
5
€7,52
10
€7,43
29
€7,34
49
€7,25
75
€7,16
100
€6,71
200
€6,62
250
€6,53
500
€6,44
1000
€6,27
SKU:
16B-1-NO12-MB
Branded 16B-1-NO12 BS Simplex Chain Single Cranked Cottered Link 1 inch Pitch
- Regular price
- €8,95 ex VAT
- Sale price
- €8,95
- Regular price
-
Description

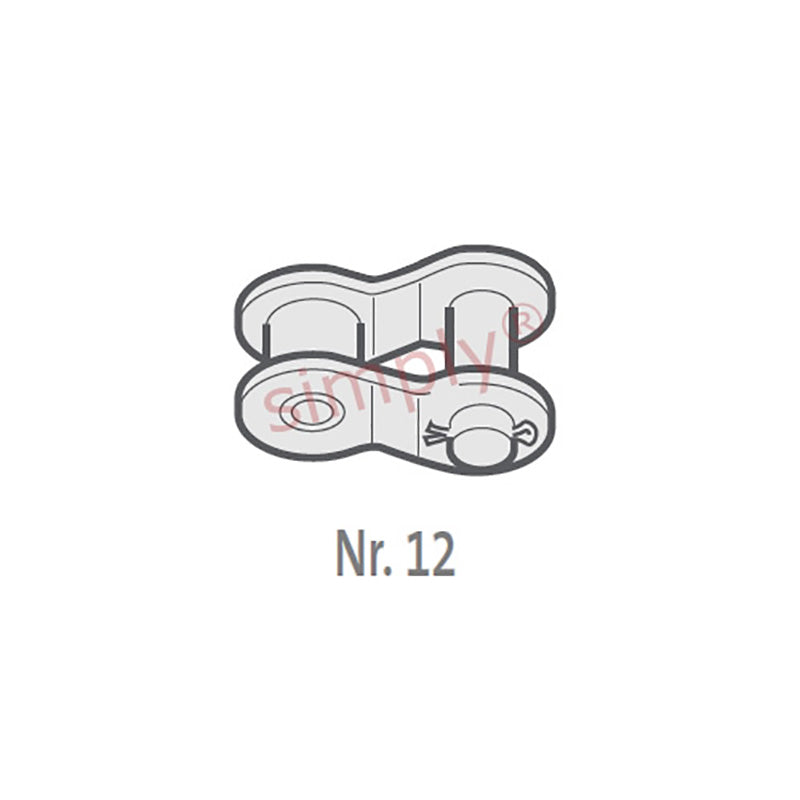

Branded OL / No. 12 European (BS) Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 36mm |
| Connecting Link Extension max (J) | = | 1.2mm |
| ISO606 Tensile Strength min | = | 60000 N |
| Weight | = | 0.017kg/m |
