SKU: 12B-3-SD-NO12-RENOLD
Renold SD 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- €12,95 ex VAT
- Sale price
- €12,95
- Regular price
-
In stock
Quantity Price Breaks
2
€11,53
5
€10,88
10
€10,75
29
€10,62
49
€10,49
75
€10,36
100
€9,71
200
€9,58
250
€9,45
500
€9,32
1000
€9,07
SKU:
12B-3-SD-NO12-RENOLD
Renold SD 12B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- €12,95 ex VAT
- Sale price
- €12,95
- Regular price
-
Description

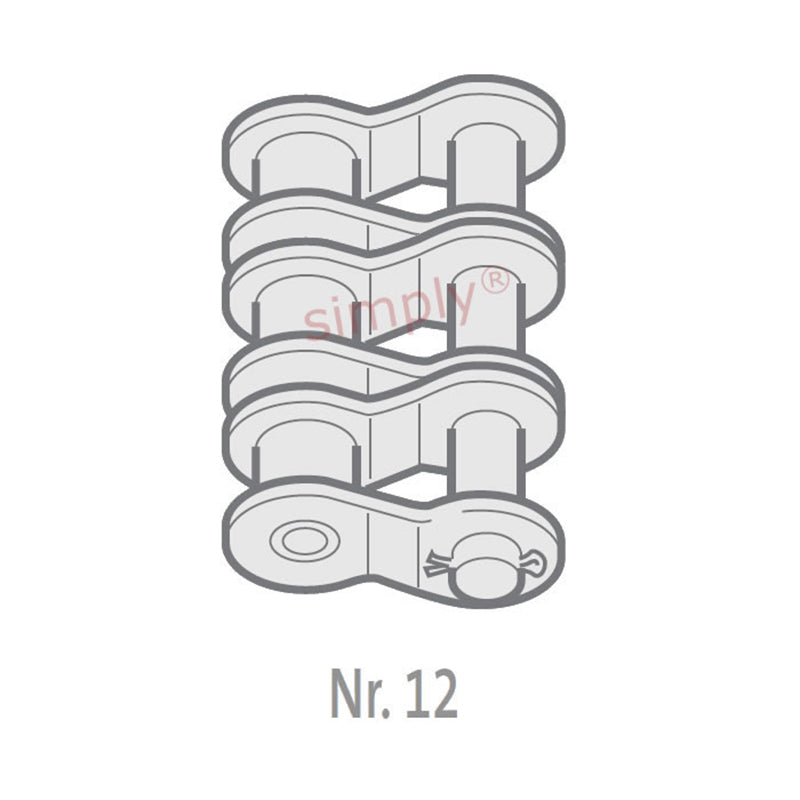

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 11.68mm |
| Roller Diameter max (C) | = | 12.07mm |
| Plate Height max (D) | = | 16.1mm |
| Plate Width Inner max (E) | = | 1.8mm |
| Plate Width Outer max (F) | = | 1.8mm |
| Pin Diameter max (G) | = | 5.72mm |
| Pin Length max (H1) | = | 61.5mm |
| Connecting Link Extension max (J) | = | 4.5mm |
| ISO606 Tensile Strength min | = | 86700 N |
| Weight | = | 0.023kg/m |
