SKU: 12B-2-SD-NO12-RENOLD
Renold SD 12B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- €9,95 ex VAT
- Sale price
- €9,95
- Regular price
-
In stock
Quantity Price Breaks
2
€8,86
5
€8,36
10
€8,26
29
€8,16
49
€8,06
75
€7,96
100
€7,46
200
€7,36
250
€7,26
500
€7,16
1000
€6,97
SKU:
12B-2-SD-NO12-RENOLD
Renold SD 12B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/4 inch Pitch
- Regular price
- €9,95 ex VAT
- Sale price
- €9,95
- Regular price
-
Description

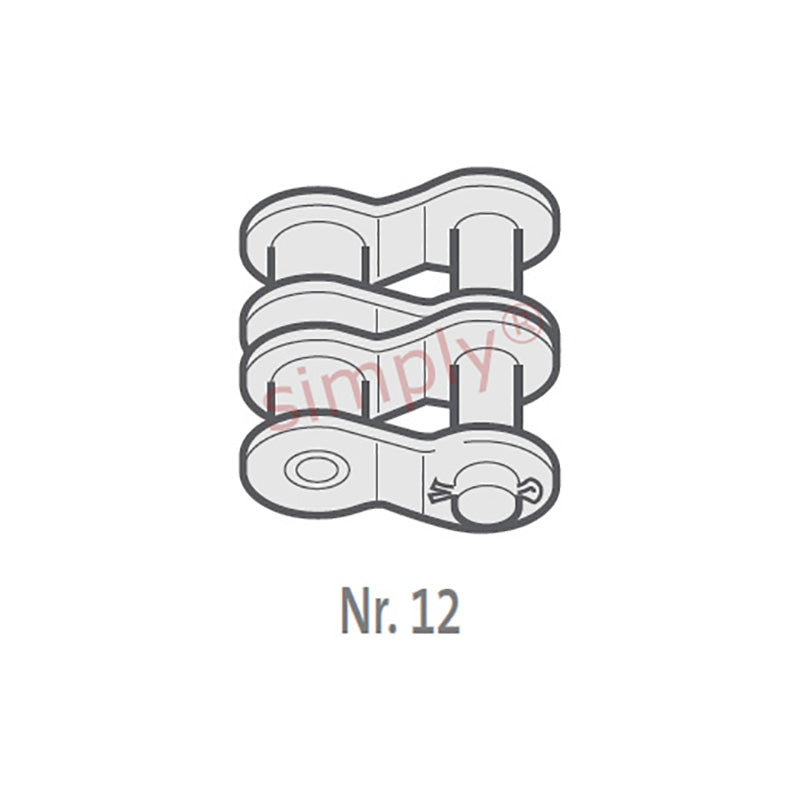

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 11.68mm |
| Roller Diameter max (C) | = | 12.07mm |
| Plate Height max (D) | = | 16.1mm |
| Plate Width Inner max (E) | = | 1.8mm |
| Plate Width Outer max (F) | = | 1.8mm |
| Pin Diameter max (G) | = | 5.72mm |
| Pin Length max (H2) | = | 42.1mm |
| Connecting Link Extension max (J) | = | 1.5mm |
| Transverse Pitch nom (K) | = | 19.46mm |
| ISO606 Tensile Strength min | = | 57800 N |
| Weight | = | 0.015kg/m |
