SKU: 1216-EU
1216 Budget Open Self Aligning Ball Bearing with Cylindrical Bore 80x140x26mm
- Regular price
- €62,95 ex VAT
- Sale price
- €62,95
- Regular price
-
Not in stock
Quantity Price Breaks
10
€56,03
19
€52,88
29
€52,25
39
€51,62
49
€50,99
74
€50,36
99
€47,21
199
€46,58
249
€45,95
499
€45,32
999
€44,07
SKU:
1216-EU
1216 Budget Open Self Aligning Ball Bearing with Cylindrical Bore 80x140x26mm
- Regular price
- €62,95 ex VAT
- Sale price
- €62,95
- Regular price
-
Description
|
Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds |

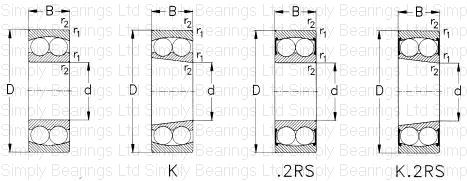

Technical
| --- | = | Dimensions |
| d | = | 80mm |
| D | = | 140mm |
| B | = | 26mm |
| D1 | = | 125mm |
| d1d2 | = | 101mm |
| r1r2 | = | 2mm |
| = | da min | |
| 91mm | = | Da max |
| 129mm | = | ra max |
| 2mm | = | --- |
| Calculation Data | = | C |
| 39.7kN | = | Co |
| 1730 | = | Pu |
| 0.83kN | = | ref |
| 9500rpm | = | limit |
| 6000rpm | = | e |
| 0.16 | = | Y1 |
| 3.9 | = | Y2 |
| 6.1 | = | Y0 |
| 4 | = | --- |
| Weights | = | kg |
| 1.65 | = | N/A |
