SKU: 10B-1-SNX-NO30-RENOLD
Renold SYNO 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €31,95 ex VAT
- Sale price
- €31,95
- Regular price
-
Not in stock
Quantity Price Breaks
2
€28,44
5
€26,84
10
€26,52
29
€26,20
49
€25,88
75
€25,56
100
€23,96
200
€23,64
250
€23,32
500
€23,00
1000
€22,37
SKU:
10B-1-SNX-NO30-RENOLD
Renold SYNO 10B-1-NO30 BS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €31,95 ex VAT
- Sale price
- €31,95
- Regular price
-
Description

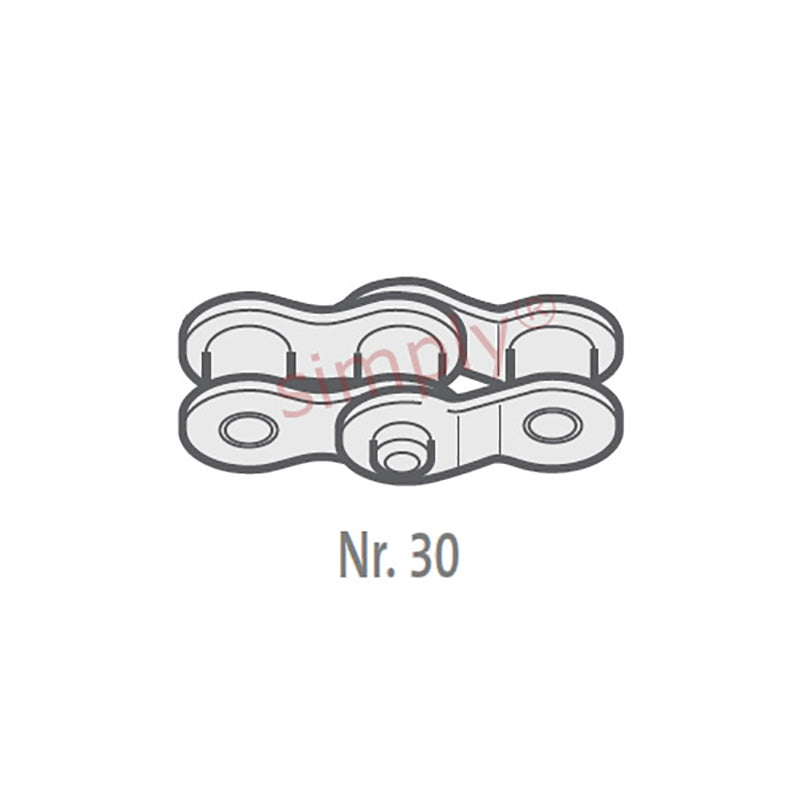

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.65mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 18.8mm |
| Connecting Link Extension max (J) | = | 2.5mm |
| ISO606 Tensile Strength min | = | 22200 N |
| Weight | = | 0.009kg/m |
